Antenna systems

The verticals, wires, and dipoles that turn a quiet stop into real contacts.

Antenna and radio gear setup
Antenna and radio gear setup
Antenna and radio gear setup
Antenna and radio gear setup

Go-to antennas

Out in the field, the antenna is the part that decides whether you actually make a contact or just stand there with a quiet radio. I keep three in rotation because no single antenna covers every situation I run into. Sometimes I have ten minutes before a hike, sometimes I have an afternoon and a real tree to throw a wire over. Here's what I grab, and the honest reason behind each one.

  • Close-up of the REZ Antenna Systems Recon 40 coil and antenna section

    REZ Antenna Systems

    Recon 40

    First out of the bag.

    If I have ten minutes and just want to be on the air, this is the one I reach for first. It drops onto a ground spike, stays put, and I'm calling CQ before I'd be done laying out a counterpoise for anything else. I run it on 20 m most of the time and flip the coil bypass when I want to pop up to 40 m without retuning a thing. It's not the antenna I'd pick for a contest, but for a quick park stop or a trailhead activation, nothing in my bag is faster.

    Style
    Vertical, ground-spike mounted
    Bands
    20 m and 40 m via the coil bypass switch

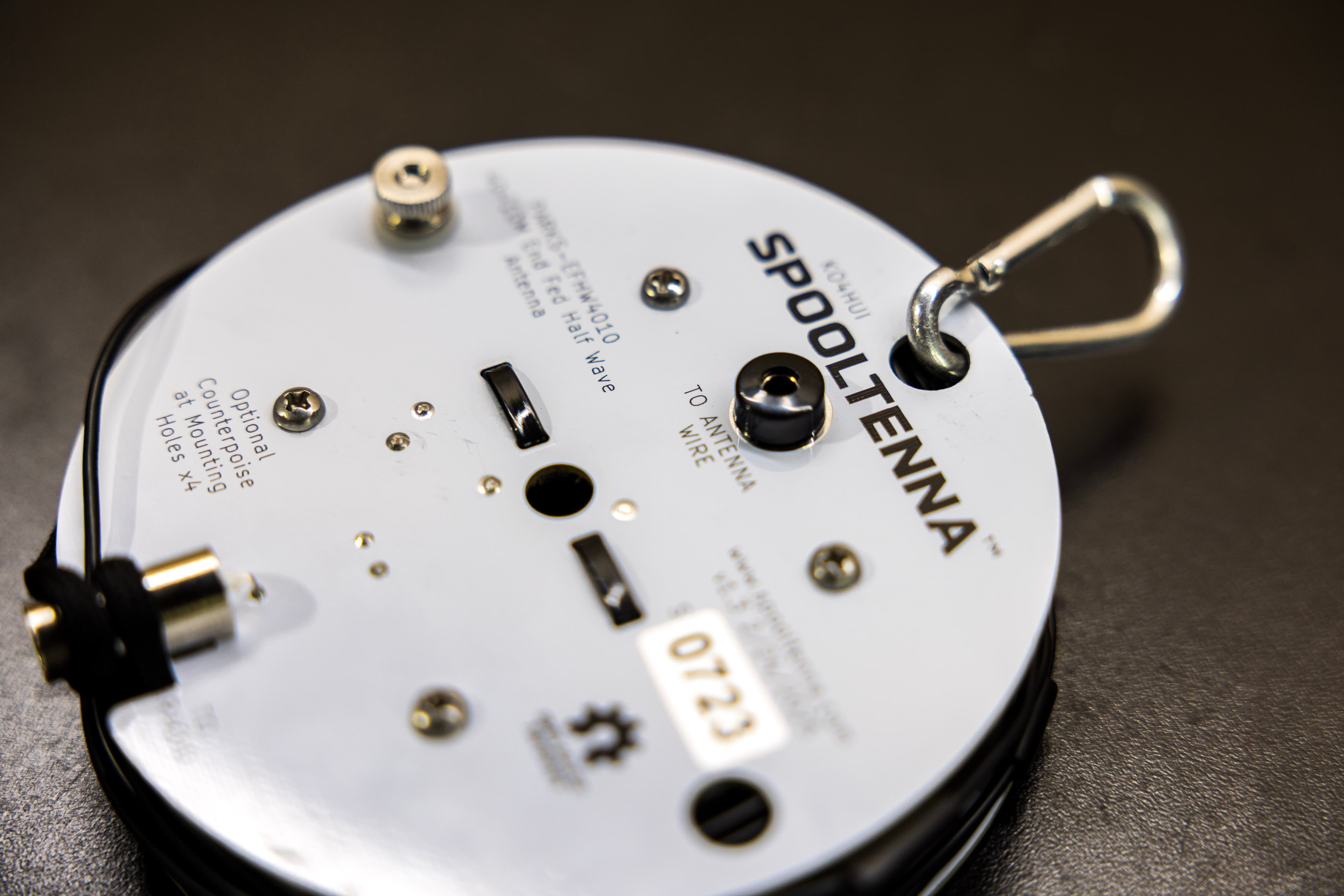

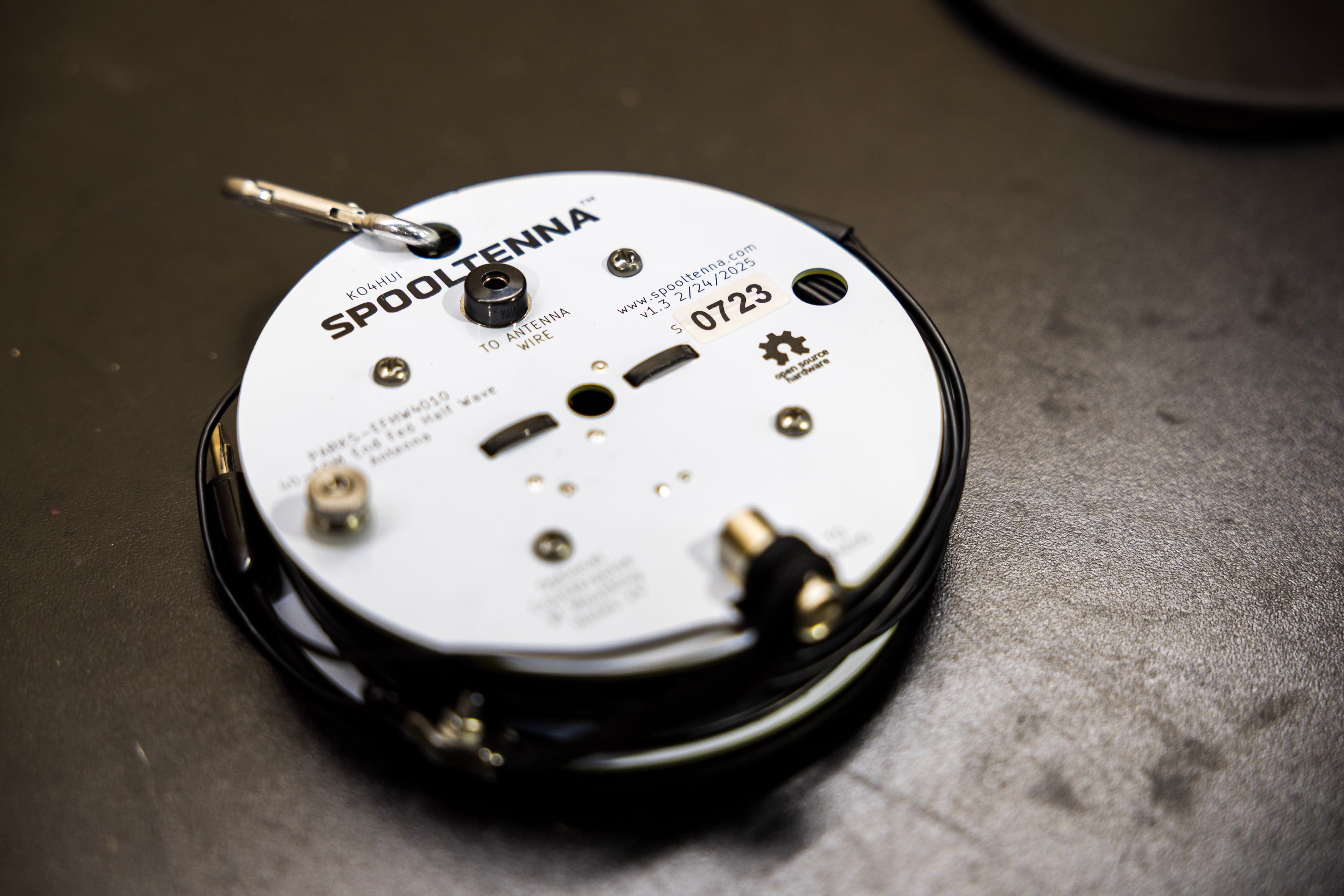

  • Close-up of the Spooltenna End-Fed Half-Wave antenna spool

    Spooltenna

    End-Fed Half-Wave

    For long, casual sessions.

    Small, lightweight, easy to pack, and it just performs. End-fed half-waves are resonant on multiple harmonically related bands, so a wire cut for 40 m is also resonant on 20 m, 15 m, 10 m, and so on down to 6 m. That's the real reason I reach for this one when I want to sit down and operate for a while: I can actually scroll through the bands without walking back to swap anything out or fight a tuner. I throw the end up over a tree limb with a weight, run the feed point off a small spike or a fence post, and that's the whole setup. Being able to just spin the VFO and land somewhere new is what makes this the one I pick up for a long, casual session. If the weather's cooperating, I'll usually leave it out for a few days at a time.

    Style
    End-fed half-wave on a spool
    Bands
    40 m through 6 m

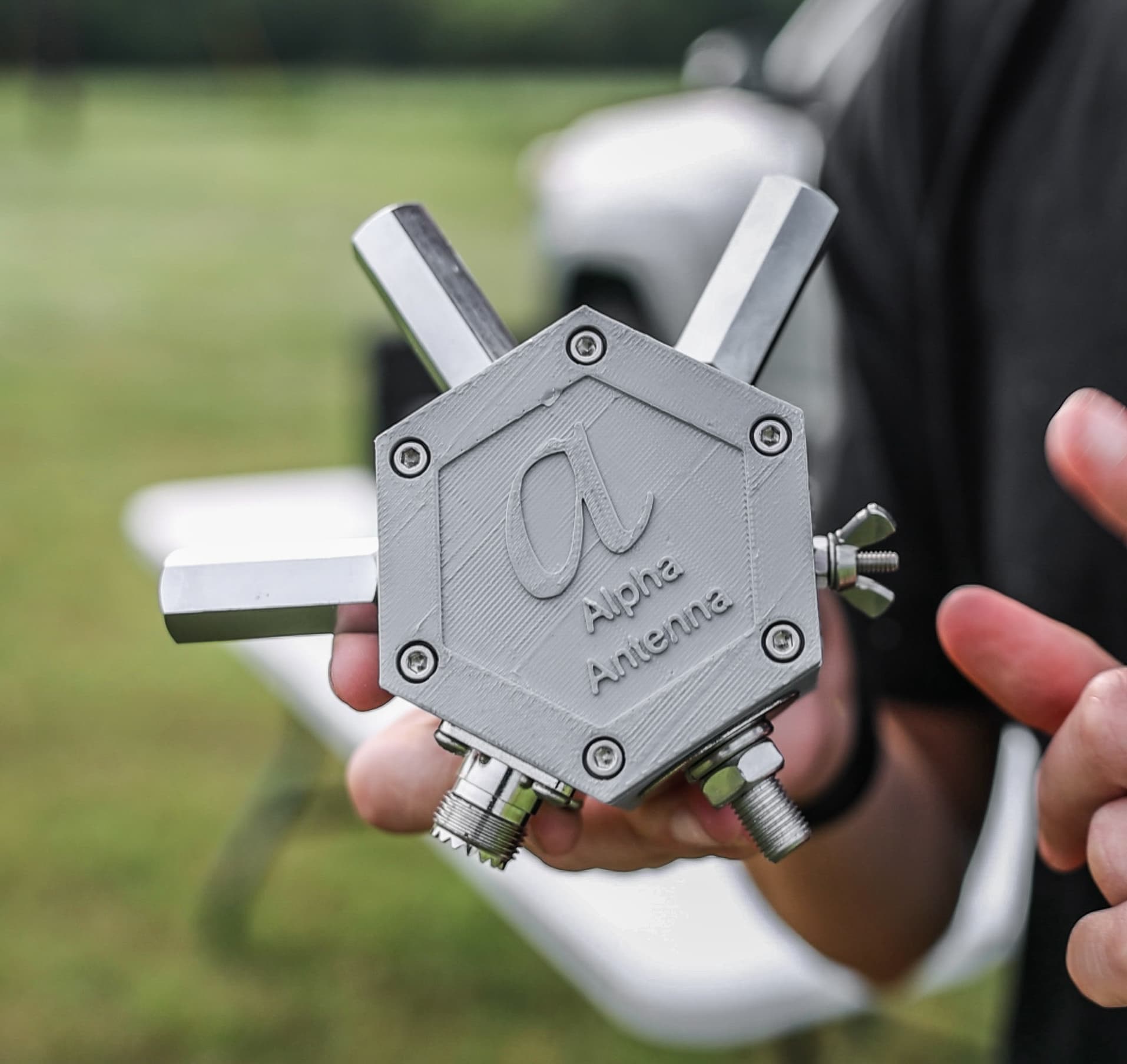

  • Close-up of the Alpha Antenna Hextenna Deluxe hub

    Alpha Antenna

    Hextenna Deluxe

    When I want every dB.

    When I have time and space and I want the cleanest signal of the day, the Alpha Hextenna Deluxe goes up. Dipoles just perform, and there's a reason they've been the reference antenna in this hobby for a hundred years. Getting one elevated makes a real difference in how I sound on the other end. The trade is honest: it's bigger, it takes longer to put up, and switching bands means walking back to the antenna and manually retuning. So this one comes out when I'm staying a while, the weather's cooperating, and I want the best shot at long-haul contacts. If you've been frustrated by your portable setup, this is the one I'd hand you.

    Style
    Resonant dipole, elevated
    Bands
    One band at a time, manual retune to switch
